lightbulbArtificial Lighting and
the Blue Light Hazard

(The Facts About Lighting and Vision)
by
Dan Roberts, Founding Director
Macular Degeneration Support
(Updated October 3, 2011)

Contents
Introduction
What Is Light?
The Blue Light Hazard
Terms Referring to Measurement of Light
Types of Lamps
The Problem With Full-Spectrum Lamps
Market Survey
Summary
Discussion
Safe Options
Live Comparison of Representative Lamps
A Message To The Industry
Random Quotes
Credits
References


lightbulb Introduction

      Research continues to warn about the danger of sunlight to the eyes. Doctors wisely respond by recommending eye protection while outdoors during daylight. Curiously, however, some lighting manufacturers say lamps duplicating sunshine are good for vision and eye health. This presents a quandary that needs to be addressed.

      Who is right? How does light hurt the retinas? What are the differences between fluorescent, halogen, neodymium, LED, and regular incandescent lightbulbs? What is meant by “full spectrum” and “daylight?” What kind of lighting is best and safest? Before approaching these questions, it is important to have a basic understanding of light and its effects on the retina.

lightbulb What is Light?

      Light is made up of electromagnetic particles that travel in waves. The human eye responds to only a small part of the entire electromagnetic spectrum. From the longest waves (lowest frequency) through the shortest waves (highest frequency), lighting specialists identify the electromagnetic wave regions as 1) radio waves, 2) microwaves and radar, 3) millimeter waves and telemetry, 4) infrared, 5) visible light, 6) ultraviolet, and 7) x-rays and gamma rays.



(Fig. 1)

      As illustrated in Figure 1, the “visible light spectrum” is that small part of the electromagnetic wave spectrum seen as colors. The visible light spectrum ranges from about 700nm (nanometers) to about 400nm. In order, the colors are red, orange, yellow, green, blue, indigo, and violet. These are the colors of a rainbow from top to bottom, which can be remembered by the fictitious name ROY G BIV.

       The retina is a very thin, multi-layered tissue located at the back of the eyeball. The lens at the front of the eyeball focuses light onto it.

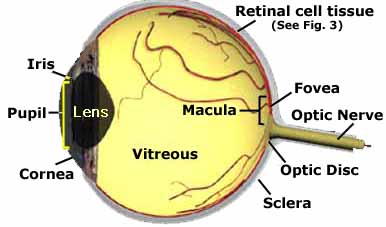

graphic of eyeball structure
(Fig. 2)

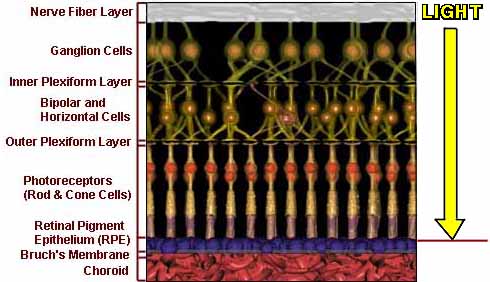

      As shown in Figure 3, light first enters the optic (or nerve) fiber layer and the ganglion cell layer, under which most of the nourishing blood vessels of the retina are located. This is where the nerves begin, picking up the impulses from the retina and transmitting them to the brain.

graphic of retinal layers
(Fig. 3)


      The light is received by photoreceptor cells called rods (responsible for peripheral and dim light vision) and cones (providing central, bright light, fine detail, and color vision). The photoreceptors convert light into nerve impulses, which are then processed by the retina and sent through nerve fibers to the brain.

      Until recently, the rod and cone photoreceptor cells in the retinas have been credited with total responsibility for light sensitivity. Recent research, however, has shown that some of the ganglion cells may be performing as a third type of photoreceptor called “intrinsically photosensitive retinal ganglion cells” (ipRGC).1 2 These sparsely situated cells are most sensitive to blue light. They seem to exist principally to help differentiate between day and night (thus modulating the "sleep/wake" cycles, known as circadian rhythms). 3 4 5 The ipRGC have been shown to independently control dilation and contraction of the pupils, with a peak response at the blue light wavelength of 480nm. Some researchers have concluded through testing that the reaction of these ganglion cells is evidence of the importance of blue light to useable vision. An opposing view is that such experiments are actually measuring the subject's psychological reaction to the apparent increase in the field of view caused by the contribution of the ipRGC. This, researchers say, may cause the subject to interpret the environment as "brighter." Both sides agree that more study is needed before any definite conclusions can be drawn.

lightbulb The Blue Light Hazard

      Sight requires light. As years go by, accumulation of lipofuscin (cellular debris) in the retinal pigment epithelium (RPE) may make the retina more sensitive to damage from chronic light exposure.6 7 8 9 10 11 12 13 14 15 Retinal light damage has been studied by exposing experimental animals and cell cultures to brilliant light exposures for minutes to hours. According to some of these studies,16 17 18 19 blue light waves may be especially toxic to those who are prone to macular problems due to genetics, nutrition, environment, health habits, and aging. On the other hand, acute retinal phototoxicity experiments such as these can cause retinal injuries, but they cannot simulate a lifetime of normal light exposure. Some researchers have noted strong similarities between photic injury and retinal abnormalities caused by years of overexposure to light.47 48 49 50 Others have found no similarities. 51 52 53 54 55 56 57 58 Whereas the shorter wavelengths of UV-A and UV-B are somewhat filtered by the lens and cornea, animal studies have shown that the light spectrum from UV through blue can be harmful. During lengthy exposures of up to 12 hours, toxicity of the retina is known to increase as the light wavelengths grow shorter.20 21 22 23 24 25 26 27 28 29 30 31 32 33 56 More recently, research on human fetal cell tissue has also revealed damage from blue light exposure.78 Fortunately, healthy retinas have a wide array of built-in chemical defenses against UV-blue light damage. They bear such imposing names as xanthophyll, melanin, superoxide dismutase, catalase, and glutathione peroxidase. And then there are the more familiar agents vitamin E, vitamin C, lutein, and zeaxanthin. 35 36 37 38 39 Unfortunately, these defenses can weaken with disease, injury, neglect, and age.

      Another built-in protective process is that the natural lens takes on a yellowish tint with age, which helps to filter blue light.59 60 After cataract surgery, however, patients lose that benefit. Some doctors now recommend replacing the damaged lens with an intraocular lens (IOL) that is tinted to block blue light.79 The patient should be made aware, however, that this procedure will diminish scotopic (night) vision.61 62

      According to the CVRL Color & Vision database,63 light waves measuring approximately 470nm to 400nm in length are seen as the color blue. The blue bands of the visible light spectrum are adjacent to the invisible band of ultraviolet (UV) light. UV is located on the short wave, high frequency end of the visible light spectrum, just out of sight past the color violet. It is divided into three wavelengths called UV-A , UV-B, and UV-C. The effects of UV-C (100nm-290nm) are negligible, as the waves are so short they are filtered by the atmosphere before reaching the eyes. UV-A (320nm-400nm) and UV-B (290nm-320nm) are responsible for damaging material, skin, and eyes, with UV-B getting most of the blame.

      When light hits a photoreceptor, the cell bleaches and becomes useless until it has recovered through a metabolic process called the “visual cycle.” 30 31 Absorption of blue light, however, has been shown to cause a reversal of the process in rodent models. The cell becomes unbleached and responsive again to light before it is ready. This greatly increases the potential for oxidative damage, which leads to a buildup of lipofuscin in the retinal pigment epithelium (RPE) layer64 (see Fig. 3). Drusen are then formed from excessive amounts of lipofuscin, hindering the RPE in its ability to provide nutrients to the photoreceptors, which then wither and die. In addition, if the lipofuscin absorbs blue light in high quantities, it becomes phototoxic, which can lead to oxidative damage to the RPE and further cell death (apoptosis).65

      Blue light is an important element in "natural" lighting, and it may also contribute to psychological health.71 72 Research, however, shows that high illumination levels of blue light can be toxic to cellular structures, test animals, and human fetal retinas.56 66 67 68 69 70 78 79 80 81 (Also see "Random Quotes" below.) The industry has established standards for protecting consumers from extremely bright light and from UV radiation; but no standards address the blue light hazard that may be affecting millions who have retinal problems. Blue light is a duplicitous character who needs to be carefully watched. Until research proves him to be either a friend or a foe, education will help consumers make decisions based upon the facts.

      The next section defines the terms used in the lighting industry. Knowing the language will help a great deal with understanding.

Skip to next section

lightbulb Terms Referring to Measurement of Light

Color Rendering Index (CRI):

      The CRI of a lamp is a number from 20 (effectively) to 100 that describes how well the lamp’s light emission affects the appearance and vibrancy of an object’s color. It is determined by comparing the lamp with a reference source of the same Kelvin temperature (see below).

Kelvin (K):

      Kelvin is the basic unit of measurement for temperature. 0 Kelvin = -273.15° centigrade. The Kelvin temperature rating is based on the color most highly emitted. It does not express the range of a lamp’s light spectrum or the strength of it’s illumination (radiant power).

Correlated Color Temperature (CCT):

      The CCT number is a measurement of the actual color appearance of light. It is expressed in Kelvins. Low CCT numbers define “warm” lighting, like the yellow and red hues of candlelight at 1500K. High CCT numbers define “cool” lighting, like a clear blue sky at 12000K. Actual visible light measures from a low of 2000K to a high of 7500K.

Footcandle (fc) and LUX (lx):

      FC and LX are unit's of illuminance(light on a surface). 1fc=lm/ft2. 1lx=lm/m2. 1lx=0.0929fc. 50 footcandle is generally considered sufficient for most tasks.

Lumen (lm):

      A lumen is the standard unit of luminous flux (the time rate of flow of radiant energy). This is a measurement at the light source (the lamp), not necessarily at the surface being lit.

Nanometer (nm):

      A nanometer is the extremely small unit used to measure lengths of light waves. A single nm equals one billionth of a meter.

Watt:

      A watt is a unit of power equal to work done at the rate of one joule (approximately 0.738 foot pounds) per second. Wattage is actually a measurement of energy, not of light.

Skip to next section

lightbulb Types of Lamps

What is a lamp?

      Contrary to popular usage, a lamp is neither a fixture that holds a lightbulb or tube, nor is it “a light.” A lamp is the lightbulb or tube itself, which is contained in the lighting “fixture” (or “instrument”). Light is the energy that emits from the lamp. Only incandescent lamps, by the way, should rightfully be called lightbulbs, due to their bulbous (i.e. fat and round) shape.

Full-Spectrum (FS):

      Technically, there is no such thing as a true full spectrum lamp, but the term is used to define a light source with a CCT of 5000K or higher and a CRI of 90 or higher. FS lamps are fluorescent, and they often have enhanced levels of UV. Only lamps that meet these specifications should be called FS.

Fluorescent:

      This type of lamp is a phosphor-coated tube filled with mercury and argon vapor. Phosphors in lamps are rare earth compounds of various types that glow during absorption of light radiation. An electrical current discharged into the vapor causes the phosphor to glow (fluoresce). Fluorescent lamps require an electrical component (a “ballast”) to create the arc that excites the gas. The type and blend of phosphors used in the coating determine the color of the emitted light.

      Fluorescent tubes containing the older halophosphate type phosphors emit light that is high in the blue spectrum. The phosphors increase the wavelength of the invisible UV rays enough to convert them into visible light beginning at 400nm. In common fluorescent tubes, UV rays are blocked mostly by the glass enclosure, protecting the eye to some extent from those harmful wavelengths. The blue light, however, passes through unimpeded.

      Most fluorescent tubes now use a triphosphor mixture, based on europium and terbium ions, which more evenly distributes over the visible light spectrum. With a blend of phosphors designed for a CCT of 5000K-6500K, these lamps come close to imitating the colors of daylight. Blue light is an important component of that mixture, so the 470nm-400nm band is not only unfiltered, it is often enhanced in the manufacturing.

Incandescent:

      Commonly known as a lightbulb, an incandescent lamp contains a tungsten filament in a vacuum. An electrical current causes the filament to glow (incandesce), while the absence of oxygen keeps it from burning up.

Neodymium:

      This is a natural heavy metal element used as a coating on the inside of some light bulbs. It filters out the yellow spectrum, thus creating a CRI closer to that of daylight. Neodymium bulbs, therefore, are often marketed as one of the types of modified-spectrum lamps, but they should not be confused with FS lamps.

Tungsten Halogen:

      Also called halogen, this lamp contains a filament made of tungsten, so it is a type of incandescent lamp. It is different than an incandescent lightbulb, however, in that it contains a gas called halogen. Halogen recycles the burned particles of the tungsten, constantly rebuilding the filament and giving it a longer life. Halogen burns very hot and bright, so it can be a safety hazard if not properly used.

Light Emitting Diodes (LEDs):

      An LED is basically a semiconductor diode. When the diode is switched on, electrons are able to recombine with electron holes, releasing energy in the form of light. The LED is usually less than 1 mm squared in area and contains components to shape its reflection and radiation pattern. LEDs are economical, efficient, durable and small. They are used in home, theater and automotive lighting, traffic signals, text and video displays, and communications technology, to name only a few of the growing number of applications.

      The amount of harm from an LED, like any other lamp, is determined by the built-in protection of the product, in combination with reasonable precautions taken by the viewer. Specific to LEDs, the wider the field of light (i.e. size of the illumination source) and the brighter (higher luminance) of that source, the more potential risk it carries for the retina. Proximity to the light source is also a consideration. One should not, for example, gaze up close into a light box of blue (or even white) LEDs for longer than 100 seconds (the maximum recommendation from the International Commission on Non-Ionizing Radiation Protection). On the other hand, a small array of white LEDs (which contain some of the blue spectrum) in a lamp used for task lighting would probably cause little problem.


lightbulb The Problem With Full-Spectrum Lamps

      With growing evidence that both UV and blue light damage the retinas of people affected by, and at risk of, retinal disease, everything possible needs to be done to avoid aggravating the condition. Consumers should arm themselves with good information to protect against the advice of marketers who may not be familiar with (or who ignore) the possible hazards.

      Manufacturers promote FS lamps as more conducive to seeing than traditional lighting systems, based upon the belief that people see best outdoors on a bright cloudless day. That assumption is disputed by others who suggest that better vision under such conditions may be a result of increased light intensity and uniformity rather than color. No known studies that have yet tested this hypothesis. Part of the reason for that paucity may be because FS lamps are difficult to define and compare. The essence of daylight is constantly changing as Earth moves in relation to the sun, and varied atmospheric conditions throughout the world measure differently.73 In view of such variables, "daylight" is a vagarious term with no standard scientific definition, so it really has no meaning in the lighting market.

      The eye inarguably sees better in the light of day than in the dark of night. A good deal of research is showing, however, that the light of day (i.e. high in the UV-blue spectrum) may be deleterious to the retinas. Since light is both practical and desirable, it is necessary. At the same time, people with retinal dystrophies need to diminish the progression of vision loss. Until good science provides more definite answers, therefore, it might be wise to not bring the sun into the house and place it on the desktop.

lightbulb Market Survey

      In an attempt to learn more about such products currently on the market, information was gathered on 19 "full spectrum" or "daylight" lamps offered by 12 companies during the year 2004. Conclusions were then drawn from their published CCTs, CRIs, and descriptions.


Survey of Full Spectrum and Daylight Lamps
on the Market as of December 31, 2004



Balanced Spectrum by firstStreet (formerly TechnoScout)
BioPure Full Spectrum Light Bulb (marketed by Joseph Mercola, D.O.)
"Bright As Day!" Desk Lamp (Sharper Image Design)
Chromalux by True Sun
Coil-Lite Compact Fluorescent by True Sun
Full Spectrum (VisionMax) by Tensor
Life-Lite by True Sun (replaces Vita-Lite by Duro-Test Light Corp.)
Lumichrome 1XX by True Sun
Neolite light bulbs by Full Spectrum Solutions
Ott-Lite (Developed by Vita-Lite)
Paralite-Maxum 5000 by Full Spectrum Solutions & True Sun
Paralite-Spectra 5900 by Full Spectrum Solutions & True Sun
PureLite by Natural Lighting
Phillips TL 90 Series-T8 Fluorescent Lamps by Full Spectrum Solutions & True Sun
Sunlight Lamp by Bell & Howell
UltraLux by Full Spectrum Solutions
Verilux Happy Eyes
Vita-Lite by Natural Lighting
Vita-Lite Plus by Natural Lighting

lightbulb Summary

  Number of lamps surveyed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
  Lamps defined as fluorescent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
  Lamps defined as neodymium . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
  Lamps correctly described as “full spectrum” . . . . . . . . . . . . . . . . . .
  Lamps incorrectly described/implied as “full spectrum”. . . . . . . . . . .
  No claims made regarding "full spectrum" or "daylight" . . . . . . . . . .
  Lamps advertised as having enhanced or non-filtered UV. . . . . . . . .
  Lamps advertised as healthy for the eyes. . . . . . . . . . . . . . . . . . . . . .
19
15 (79%)
4 (21%)
9 (43%)
8 (42%)
2 (11%)
2 (11%)
7 (37%)


lightbulb  Discussion

      A commercial market will inevitably grow around any human condition with profit potential. For the best protection of health and pocketbooks, consumers should maintain vigilance about the facts and skepticism about anything that doesn’t pass the test of reason. At first hearing, for example, “Bright daylight is good for the eyes,” seems to make sense. But if that is so, then . . .
      Seven of the surveyed companies actually advertised their FS lamps as good for eye health. Common sense should suggest otherwise, but common sense can sometimes be overridden even by people with the best of intentions.

      Grandmother warned, “Turn on the light. You’re going to ruin your eyes. Reading in the dark makes them work too hard.” She meant well, but her suggestion should have been simply, “Turn on the light. You'll be able to see better.”

      Eyes don’t work any harder at seeing in the dark than do ears at hearing soft music. Actually, the demand on the photoreceptor cells increases as the light grows brighter. This may prove harmful to the vision of people with retinal problems, so it might be smart to reach a compromise between “enough light to see by” and “too much light.”

      The condition of individual retinas determines the level of light required. A person with early-stage macular degeneration can usually read well enough under standard lighting. A person with advanced-stage macular degeneration, however, requires higher illumination and contrast. Ironically, many are also photosensitive. They need bright lighting, but lamps that replicate sunshine might not only hasten sight loss, they can cause significant discomfort. “Enough light to see by” cannot be standardized.

      A growing body of research shows that the shorter electromagnetic waves of the light spectrum from blue (also called near-UV) through ultraviolet may be harmful. One study even suggests that lower color temperature (i.e. reduced blue light) optimizes the reading rate of people whose visual abilities have been lessened due to ARMD.74 A study of the Chesapeake Bay watermen reported a significant association between blue light and age-related macular degeneration.75 76 In view of this kind of scientifically-based evidence (no matter how small or large the studies might be), people who are at risk for retinal degeneration might be wise to consider avoiding light sources measuring higher than 5000K at high intensity.

      Lamps that imitate daylight and sunlight are said to help people see better, and some are even credited with helping to improve mood. They will, however, neither improve the health nor extend the life of retinal cells, a scientifically unsupported implication made by some manufacturers. Such lamps may be helpful for people with healthy eyes, but those who aren't so lucky should think twice. Major research shows that sunlight is a possible causative element in several retinal diseases, from retinopathy of prematurity to age-related macular degeneration.77 19. That kind of evidence should be enough to make those who are already visually-impaired wary of FS lamps.

      At the time of the survey, one distributor had established an important precedent by publicly recognizing potential optical risks associated with high levels of blue light. The company is Sunnex Biotechnologies, makers of the Lo-Light Therapy Lamp (a safe low-intensity lamp that screens out blue light). Here is a cautionary statement based upon information from their web site. It might serve as a model for makers of FS lamps to follow:

CAUTION: This lamp emits strong blue light wavelengths (470nm - 400nm), which have been shown in some studies to harm the retina. Avoid prolonged use of this product if . . .
  • you are taking photosensitizing medication such as nonsteroidal anti-inflammatory drugs (NSAIDs), most antidepressants, some antibiotics, diuretics, and beta-blockers and other heart medications;

  • you have a pre-existing ocular condition such as macular degeneration;

  • you are diabetic or otherwise at risk for retinal damage; or

  • you are 55+ years of age.

lightbulb Safe Options

      Several lamp manufacturers provide products that offer intensity, contrast, and good color replication without the high color temperatures of full spectrum lamps. Listed below are examples of bright desk lamps and task lamps on the market with CCTs below 5000K. So far, these and similar products represent the safest for low vision people.

Allievo, Elegance, and Junior LED Lamps (www.berryessadesigns.com)
LazLight Task Lamp (no longer available)
SoLux Task Lamp and Solux Touch-On Dimmable Lamp (www.solux.net)


lightbulb  Live Comparison of Representative Lamps

      To demonstrate the differences in lamp types, lighting products mentioned in this paper were acquired and compared. The demonstration was designed with six lamps for an exhibit at the 2005 meeting of the Academy for Research in Vision and Ophthalmology (ARVO) and at other gatherings of researchers, eye care professionals, and patients. Since then, an LED lamp has been added to the display. This section describes the display and discusses the most typical observations made by viewers.

Task lamps compared:

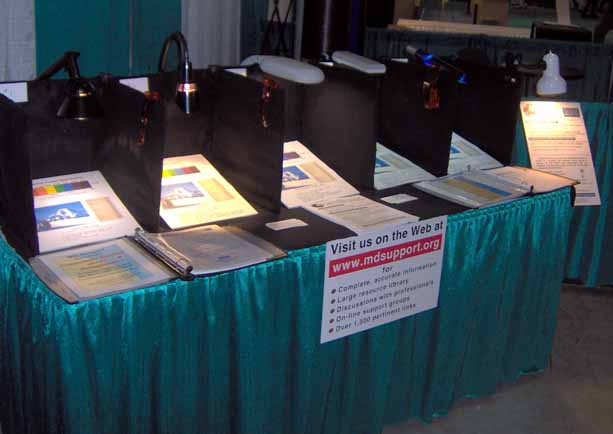

Set-up:

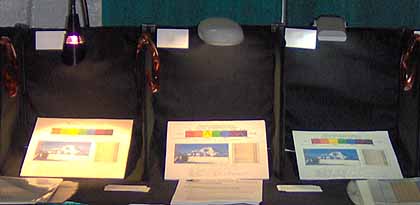

MD Support display at the 2005 convention of the
Association for Research in Vision and Ophthalmology (ARVO)


      The lamps are each placed to shine into individual sections of a 6-foot long display unit. All lamp heads are equidistant from the surface and shining at maximum power. They each illuminate posters that display the following content:

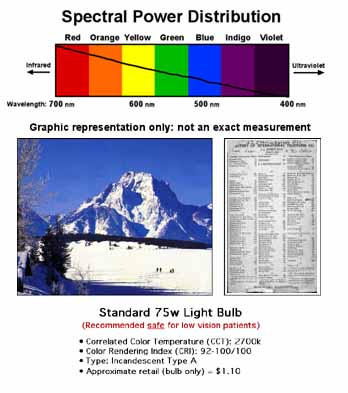

Sample poster:


Procedure

Typical Observations and Discussion

closeup


lightbulb  A Message To The Industry

The message from the low-vision community is simple:


       In view of the expanding volume of research, plus the increasing number of people diagnosed with retinal disease each year, manufacturers are encouraged to voluntarily join the low vision community and eye care specialists in this education effort. Modern lighting technology can help people see better, but only through clear and honest marketing will the liability for proper decisions be theirs alone.



Random Quotes
Cautionary Statements From The Literature

" ...people with the highest levels of exposure [to UV-A, UV-B, and blue light] in the middle of the day had two fold increased risks of AMD. Our results showing the increased risk from high exposures to solar radiation underline the importance of ocular protection in European populations." Augood, C. et al. Age-related maculopathy and macular degeneration in elderly European populations: the EUREYE study, 2004.

"The photoreceptors in the retina . . . are susceptible to damage by light, particularly blue light. The damage can lead to cell death and diseases." Shaban H, Richter C. A2E and blue light in the retina: the paradigm of age-related macular degeneration. Biol Chem 2002 Mar-Apr;383(3-4):537-45.

"The effectiveness of light in inducing photodamage to the retina increases with decreasing wavelength from 500 to 400 nm." Andley UP,? L.T. Chylack Jr LT. Recent Studies on Photodamage to the Eye with Special Reference to Clinical and Therapeutic Procedures. Photodermatology Photoimmunology and Photomedicine 1990; 7:98-105.

". . . when albino rats were exposed to either monochromatic blue light of 403 nm . . . or monochromatic green light of 550 nm . . . massive apoptotic cell death occurred after illumination with blue light." Remé et al. Apoptosis in the Retina: The Silent Death of Vision C E. News Physiol Sci 15: 120-124, 2000.

". . . continuous exposure to blue light is potentially dangerous to vision." Koide R, Ueda TN, Dawson WW, Hope GM, Ellis A, Somuelson D, Ueda T, Iwabuchi S, Fukuda S, Matsuishi M, Yasuhara H, Ozawa T, Armstrong D. Nippon. Retinal hazard from blue light emitting diode. Ganka Gakkai Zasshi. 2001 Oct;105(10):687-95.

". . . high levels of exposure to blue or visible light may cause ocular damage, especially later in life, and may be related to the development of age-related macular degeneration." Taylor HR, West S, Munoz B, Rosenthal FS, Bressler SB, and Bressler NM. The Long Term Effects of Visible Light on the Eye. Archives of Ophthalmology 1992; 110:99-104.

"I think chronic blue light is probably damaging." Joshua Dunaief, MD, in Bethke W. Should We Block The Blue. Review of Ophthalmology Oct 15 2003; 10(10).

"Increased risk of AMD may result from low levels of lutein and zeaxanthin (macular pigment) in the diet, serum or retina, and excessive exposure to blue light." Bone RA, Landrum JT, Guerra LH, Ruiz CA. Lutein and Zeaxanthin Dietary Supplements Raise Macular Pigment Density and Serum Concentrations of these Carotenoids in Humans. Journal of Nutrition 2003 Apr;133(4):992-8.

"The high-energy segment of the visible region (400-500 nm) is enormously more hazardous than the low energy portion (from 500-700 nm)." Young RW. Solar Radiation and Age Related Macular Degeneration. Survey of Ophthalmology 1988; 32(4): 252-269.

"Visible light of short wavelength (blue light) may cause a photochemical injury to the retina, called photoretinitis or blue-light hazard." Okuno T, Saito H, Ojima Evaluation of blue-light hazards from various light sources. J. Dev Ophthalmol. 2002;35:104-12.

"[The] Action spectrum for blue-light induced [retinal] damage shows a maximum at 400 nm and 450 nm." Bartlett H, Eperjesi F. A randomised controlled trial investigating the effect of nutritional supplementation on visual function in normal, and age-related macular disease affected eyes: design and methodology. Nutrition Journal 2003, 2:12.

"Because sunlight and many high-intensity artificial light sources contain relatively high proportions of blue, and the retina as well as pigment epithelium contain several types of blue-absorbing molecules, the short-wavelength band of the visible spectrum may contribute to the pathogenesis of age-related macular degeneration and amplify some forms of inherited retinal degeneration." Remé CE, Wenzel A, Grimm G, Iseli HP. Mechanisms of Blue Light-Induced Retinal Degeneration and the Potential Relevance for Age-Related Macular Degeneration and Inherited Retinal Diseases SLTBR Annual Meetings Abstracts 2003.

". . . the photon catch capacity of the retina is significantly augmented during blue-light illumination, which may explain the greater susceptibility of the retina to blue light than to green light. However, blue light can also affect function of several blue-light-absorbing enzymes that may lead to the induction of retinal damage." Grimm C, et al. Rhodopsin-Mediated Blue-Light Damage to the rat Retina: Effect of Photoreversal of Bleaching. Invest Ophthalmol Vis Sci 2001 Feb;42(2):497-505.

"It is not too harsh to state that virtually all persons with vision problems should be removed from a light environment where the predominant light waves are a temperature above 3500K or a wavelength less than approximately 500 nm." Elaine Kitchel, M.ED.VI. The effects of fluorescent light on the ocular health of persons with pre-existing eye pathologies. American Printing House for the Blind, 2000.

"Exposure to the eye to intense light, particularly blue light, can cause irreversible, oxygen-dependent damage to the retina. We have found that illumination of human retinal pigment epithelium cells induces significant uptake of oxygen that is both wavelength and age dependent...and contribute to the development of age-related maculopathy." Rozanowska M, et al. Blue light induced reactivity of retinal age pigment. Journal of Biological Chemistry 1995; 270(32):18825-18830.

". . . blue light induces apoptosis in human fetal RPE cells." E.M. Gasyna, K.A. Rezaei, W.F. Mieler, and K.A. Rezai. Blue light induces apoptosis in human fetal retinal pigment epithelium. Invest. Ophthalmol. Vis. Sci. 2005 46: E-Abstract 248.


      For further scientific rationale and references regarding the potential blue light hazard, see Recommendation of protective eye wear for patients suffering from degenerative retinal diseases. (Ch. E. Remé, Laboratory of Retinal Cell Biology, University Eye Clinic, Zurich, Switzerland).

      For a critical look at full-spectrum lighting, read "Full-Spectrum Light Sources," a publication of the National Lighting Product Information Program.

      For further explanation of the anatomical terms used in this article, see Eye Anatomy and Glossary on the MD Support web site.
